Kuala Lumpur International Airport (KLIA), ICAO WMKK, is Malaysia's principal international gateway, sited in the Sepang District of Selangor some 45 km south of the capital it serves. Opened in 1998 and operated by Malaysia Airports, it is a major hub for Malaysia Airlines, AirAsia, MASkargo, Batik Air Malaysia and cargo operators, and offers a sim pilot three parallel-configured runways each exceeding 13,000 feet with full ILS coverage on every threshold.
Kuala Lumpur International Airport, known widely as KLIA, is the main international airport of Malaysia, located in Sepang, Selangor, roughly 45 km south of Kuala Lumpur itself. It is operated by Malaysia Airports (MAHB) Sepang Sdn Bhd and serves as the major hub for Malaysia Airlines, MASkargo, Batik Air Malaysia, UPS Airlines and World Cargo Airlines, and as the operating base for AirAsia and AirAsia X. For a simulator pilot the airport is notable for its very long runways, dual control towers, and its status as one of the busiest and most connected hubs in the region.
KLIA sits on a large purpose-built airport site of some 100 square kilometres of former agricultural land in the Sepang District of Selangor, about 45 km south of downtown Kuala Lumpur, and it serves the wider Greater Kuala Lumpur conurbation.

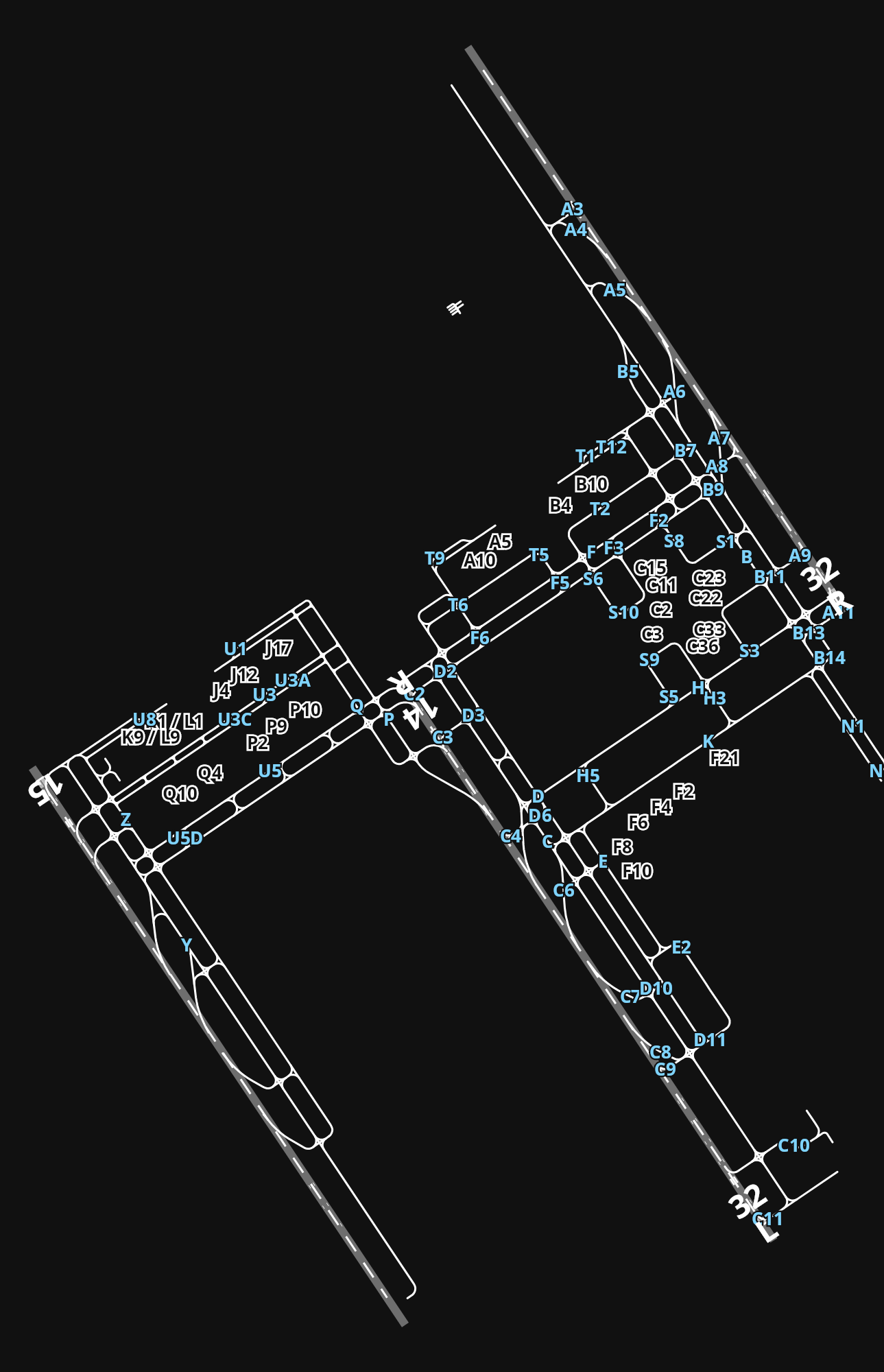

KLIA has three physical runways, all hard-surfaced and lit, each equipped with ILS. Runway 14L/32R measures 13,562 ft on the 14L threshold and 13,486 ft on the 32R threshold. Runway 14R/32L measures 13,524 ft on the 14R threshold and 13,314 ft on the 32L threshold. Runway 15/33 measures 13,387 ft on the 15 threshold and 13,282 ft on the 33 threshold. Field elevation is 46 ft.
KLIA is served by a comprehensive set of frequencies. Lumpur Approach operates on 119.45 MHz. Departure ATIS is broadcast on 126.45 MHz and arrival ATIS on 128.05 MHz. Clearance Delivery is on 126 MHz, and Lumpur Departure on 135.25 MHz. Ground movements are handled on 121.65 MHz and 122.275 MHz. Tower services are split by runway: Lumpur Tower on 118.5 MHz covers runways 14R/32L, Lumpur Tower on 118.8 MHz covers runways 14L/32R, and Lumpur Tower on 119.8 MHz covers runway 15/33. All three runways are equipped with ILS.
The groundbreaking ceremony for KLIA took place on 1 June 1993 under the government of Mahathir Mohamad, after it was decided that the existing Kuala Lumpur airport, then Subang International Airport (now Sultan Abdul Aziz Shah Airport), could not handle future demand. The airport was built as part of the Multimedia Super Corridor development plan, with the terminal designed by Japanese architect Kisho Kurokawa. Upon KLIA's completion, Subang's original Terminal 1 building was demolished and the IATA code KUL was transferred to the new airport. KLIA was developed under a three-phase plan intended eventually to provide three runways and multiple terminals; Phase One delivered the main terminal, one satellite terminal, two full-service runways, 60 contact piers, 20 remote parking bays with 80 aircraft parking positions, and four maintenance hangars with fire stations. The airport was officially inaugurated by the tenth Yang di-Pertuan Agong, Tuanku Ja'afar of Negeri Sembilan, on 27 June 1998, shortly before the 1998 Commonwealth Games. The opening was marked by significant teething problems, including failures of the aerobridge and bay allocation systems and a baggage handling system that caused delays of five to seven hours and was not fully replaced until a tender in 2007. Traffic through the airport was affected over the years by the 1997 Asian financial crisis, the September 11 attacks, SARS, avian flu, the 2008 financial crisis, the 2009 swine flu pandemic and the COVID-19 pandemic. There are three air traffic control towers on the field: Tower East and Tower West, plus an apron control tower. Tower East, the original tower dating from the airport's opening, stands 130 metres tall and controls traffic on the initial two runways.
KLIA remains the largest and busiest airport in Malaysia and a mega-hub for Peninsular Malaysia, operated by Malaysia Airports. It is the major hub of Malaysia Airlines, MASkargo, Batik Air Malaysia, UPS Airlines and World Cargo Airlines, and the operating base for AirAsia and AirAsia X, with AirAsia the dominant carrier by flight share. Malaysia Airlines, AirAsia, MASkargo and Malaysia Airports itself are all headquartered on the airport property.
